Category Type
MKT FIXINGS

Wedge Anchor B (Zinc Plated)

Zinc Plated

Steel, zinc plated
Approved for non-cracked concrete
Better corrosion resistance for hot dip galvanized



Zinc Plated Description
The Wedge Anchor B is a highly efficient throughbolt with excellent load bearing capacity in non-cracked concrete, small anchor spacings and edge distances. A broad range of more than 150 types, sizes and lengths make it a universal use anchor for medium to heavy duty applications. European approved sizes with stainless steel expansion sleeve.


Applications (Zinc Plated)
Suspended ceilings (M6-M10), metal constructions, channels, brackets, supports, hand rails, cable trays, ducts, shelf feet.



Range of concrete quality: C20/25 - C50/60

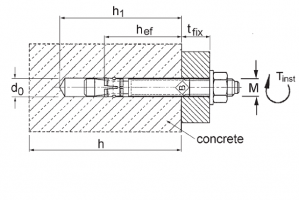

Installation of MKT B Steel Wedge Anchor


1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Drive anchor carefully with hammer into hole until nut and washer are flush with fixture.
4. Install fixture and tighten anchor to specified torque. If the marking in the threaded part of the anchor bolt becomes visible, do not load anchor.
Refer to approvals and schedules for design and building code compliance.
