JAM FIXINGS (Anchor)

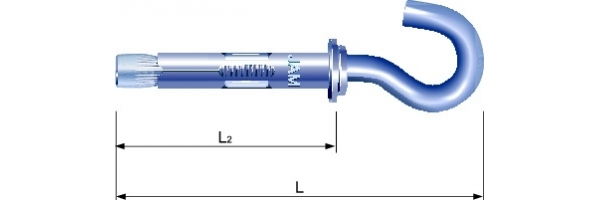

JAM-SC Sleeve Anchor- Hook (Zinc Plated)
Application
suspensions from concrete celling, scaffolding
Base material
concrete (Non-cracked concrete fcc = 30N/mm2)
| Item No. | Description |
Bore x Hole Depth do x h1 (mm) |
Thread Size x L (L2) (mm) |
Setting Depth hs (mm) |
Tightening Torqure Tinst (Nm) |
Fixture Thickness tfix (mm) |
Base Material Thickness (mm) |
Safe Working Load (kN) |
| 2010606040 | SC 8 X 48 | 8 X 55 | M6 X 78 (48) | 40 | 10 | 0 | 80 | 0.20 |
| 2010608050 | SC 10 X 60 | 10 X 65 | M8 X 60 (60) | 50 | 25 | 0 | 100 | 0.40 |
Installation of JAM-SC, JAM-SE Steel Sleeve Anchor
1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Push anchor carefully with hand into hole until nut and washer are flush with concrete.
4. Tighten with wrench to the recommended torque value.
