MKT FIXINGS

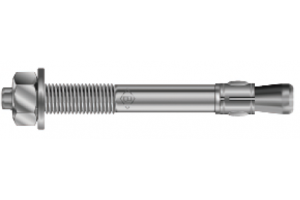

Wedge Anchor B (Hot Dip Galvanized)

Steel, Hot Dip Galvanized

Steel, hot dip galvanized
Approved for non-cracked concrete
Better corrosion resistance for hot dip galvanized



Hot Dip Galvanized Description
The Wedge Anchor hot dip galvanized offers a better corrosion resistance together with excellent load bearing capacities, small anchor spacings and edge distances.


Applications (Hot Dip Galvanized)
Indoor and outdoor medium to heavy duty applications: metal constructions, channels, brackets, supports, cladding systems, hand rails, cable trays, ducts.



Range of concrete quality: C20/25 - C50/60

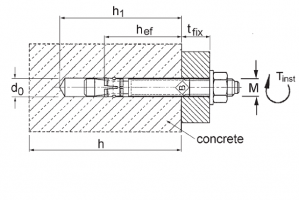

Installation of MKT B Steel Wedge Anchor


1. Drill to specified diameter and depth.
2. Clean the hole with blow-out bulb.
3. Drive anchor carefully with hammer into hole until nut and washer are flush with fixture.
4. Install fixture and tighten anchor to specified torque. If the marking in the threaded part of the anchor bolt becomes visible, do not load anchor.
Refer to approvals and schedules for design and building code compliance.
